Engine
Inline, 6-cyl./145 hp 2bbl
Original engine
Yes
Transmission

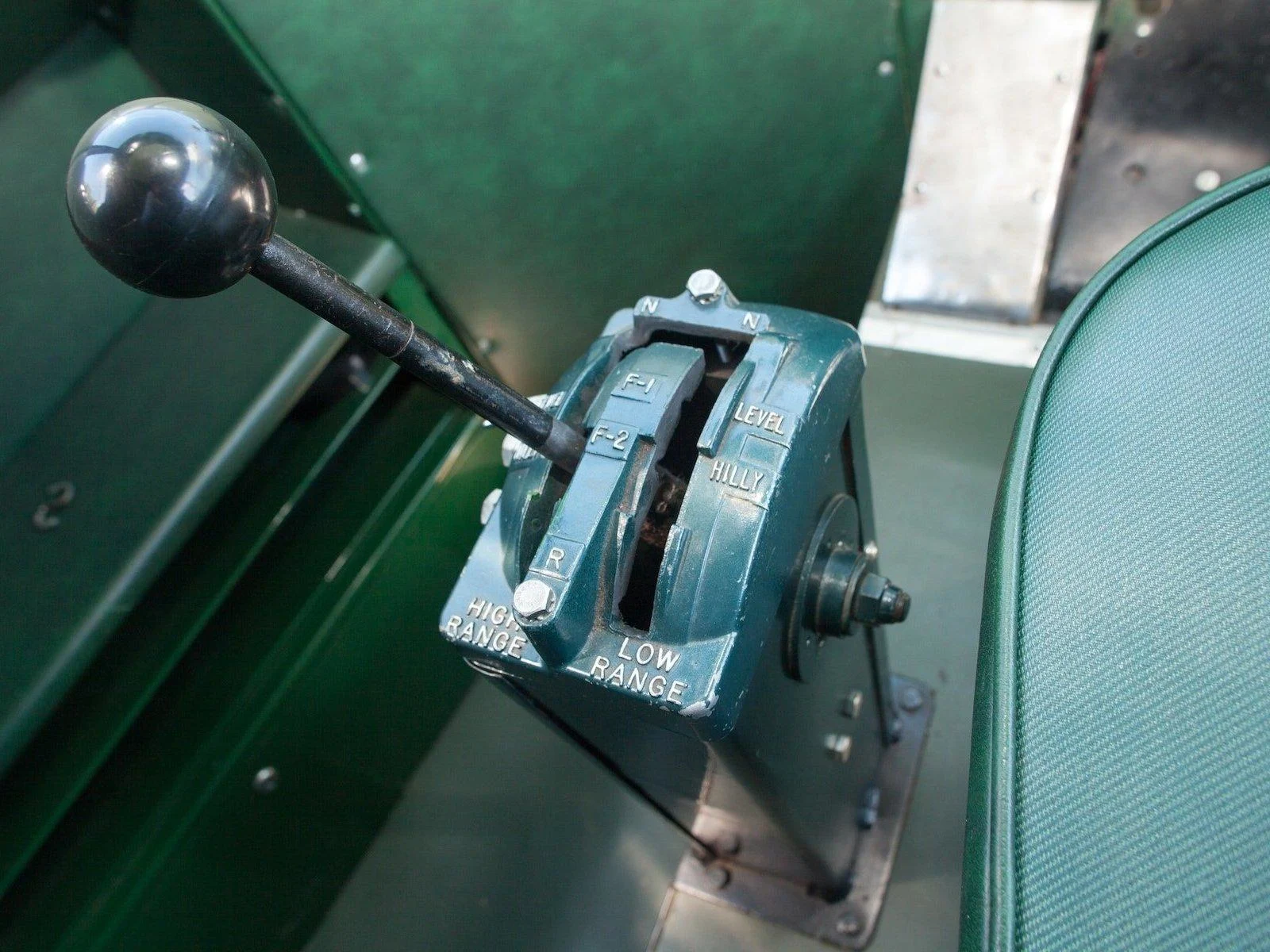

Four-speed General Motors Hydra-Matic automatic transmission with two-speed reduction unit.
Exterior color
Red and white
Interior color
Green

Vehicle history

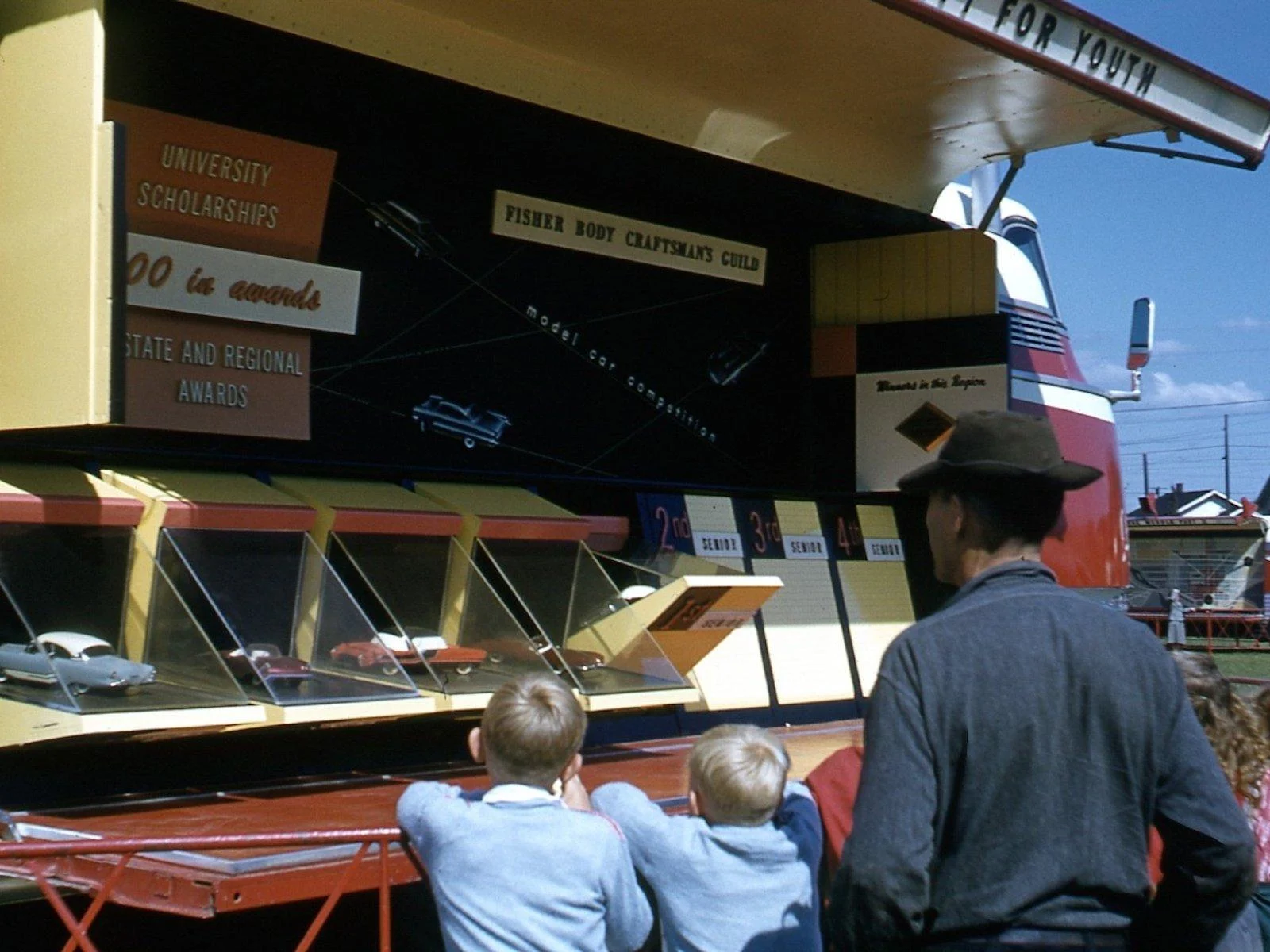

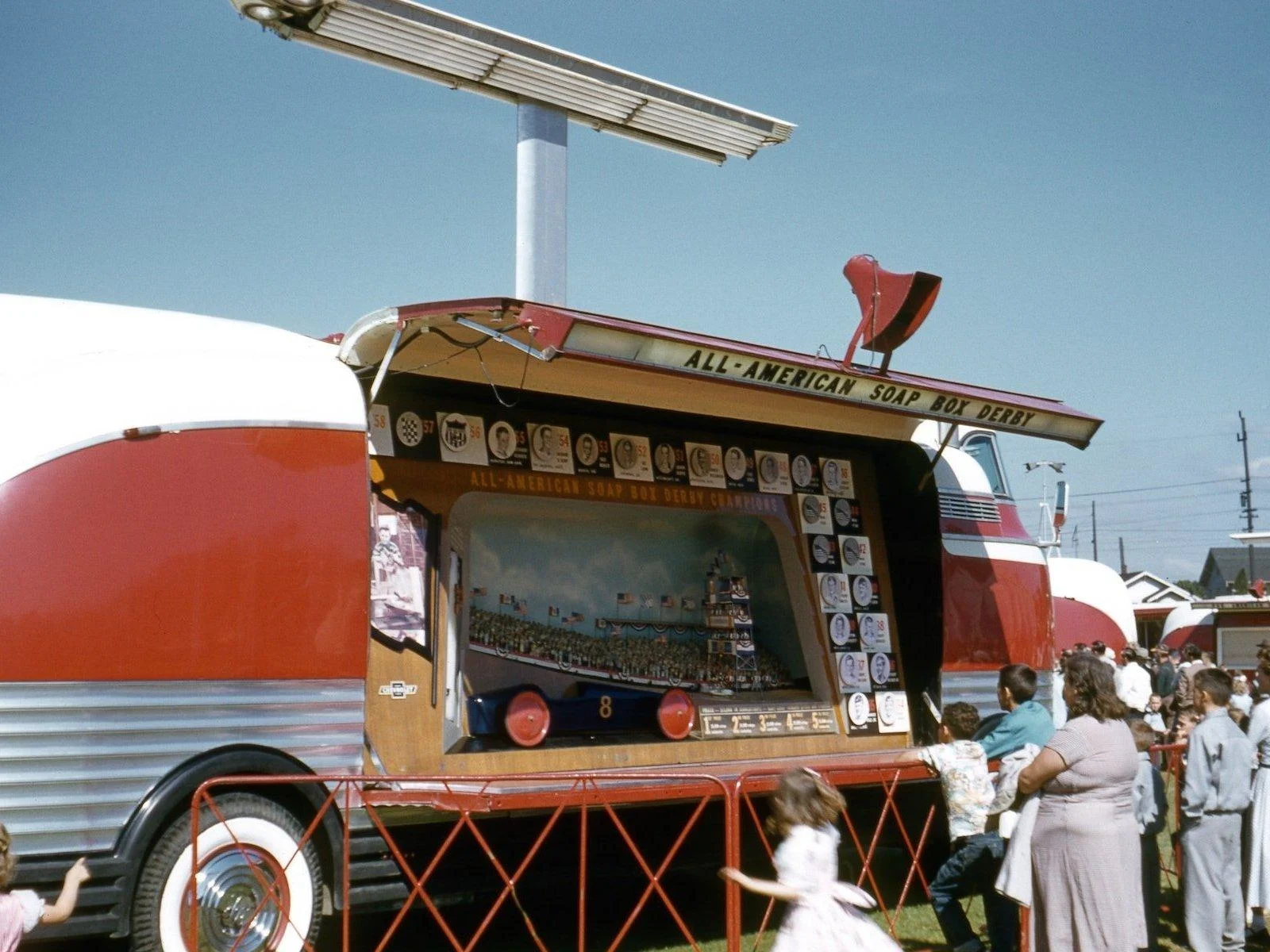

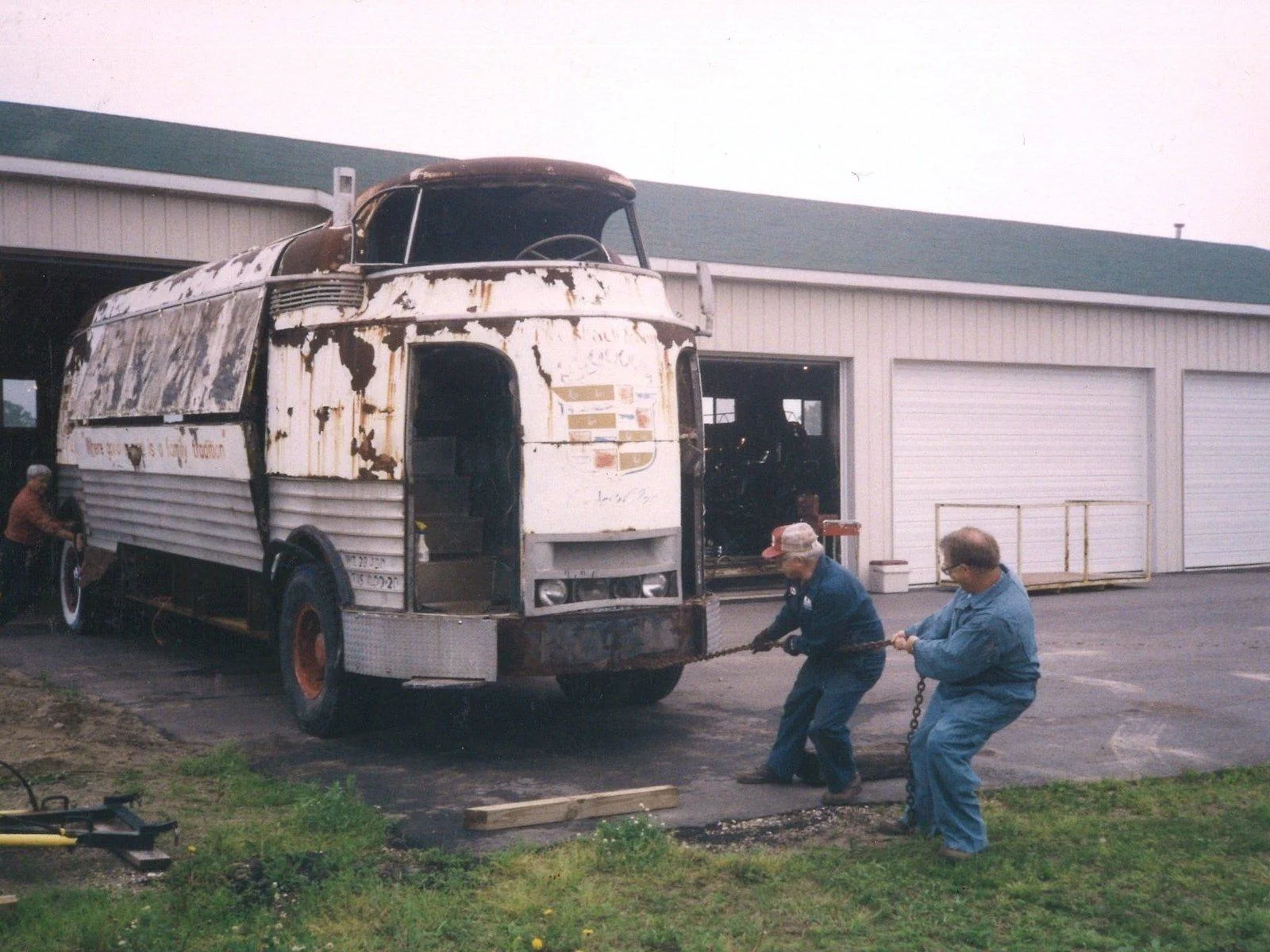

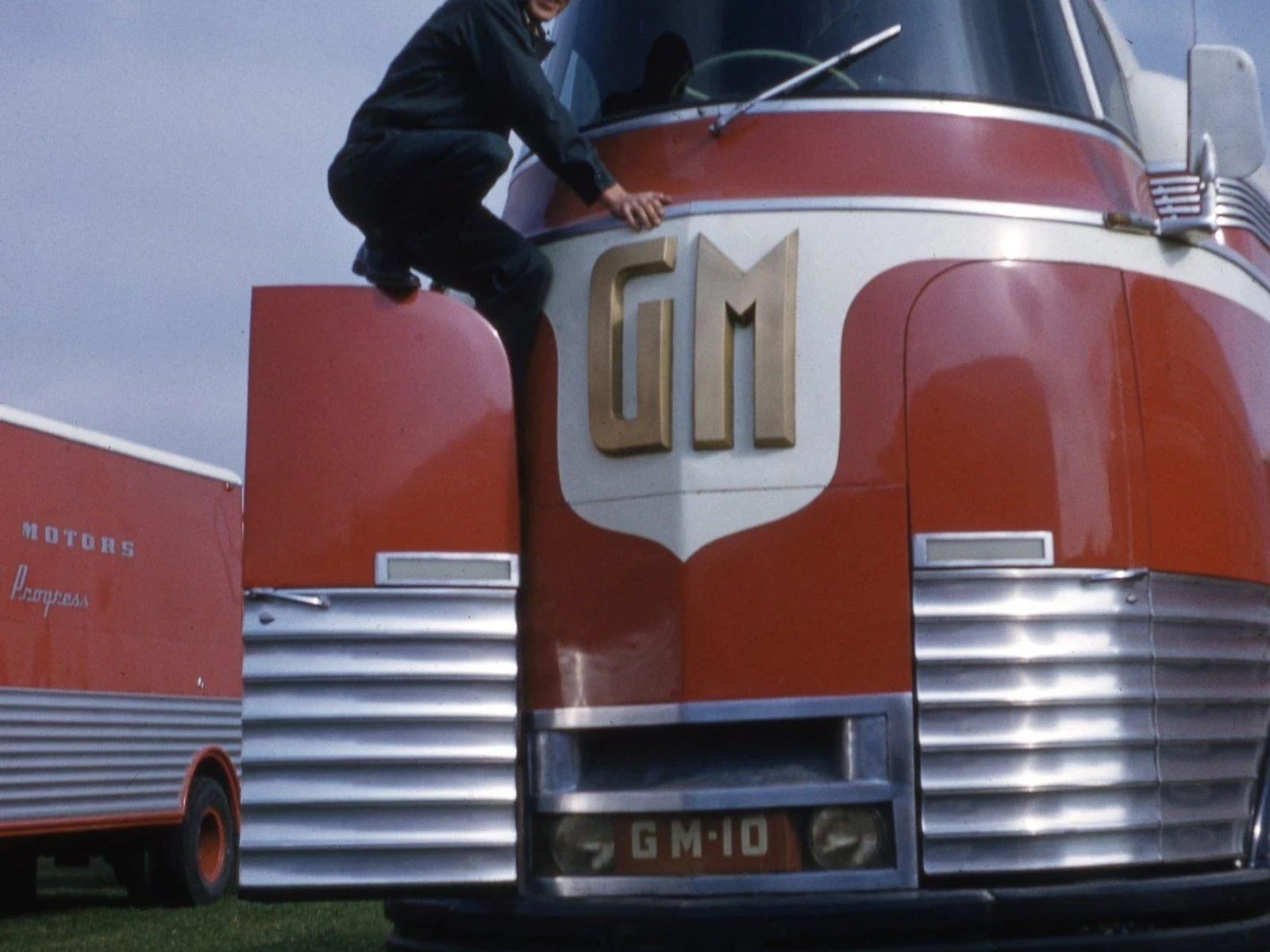

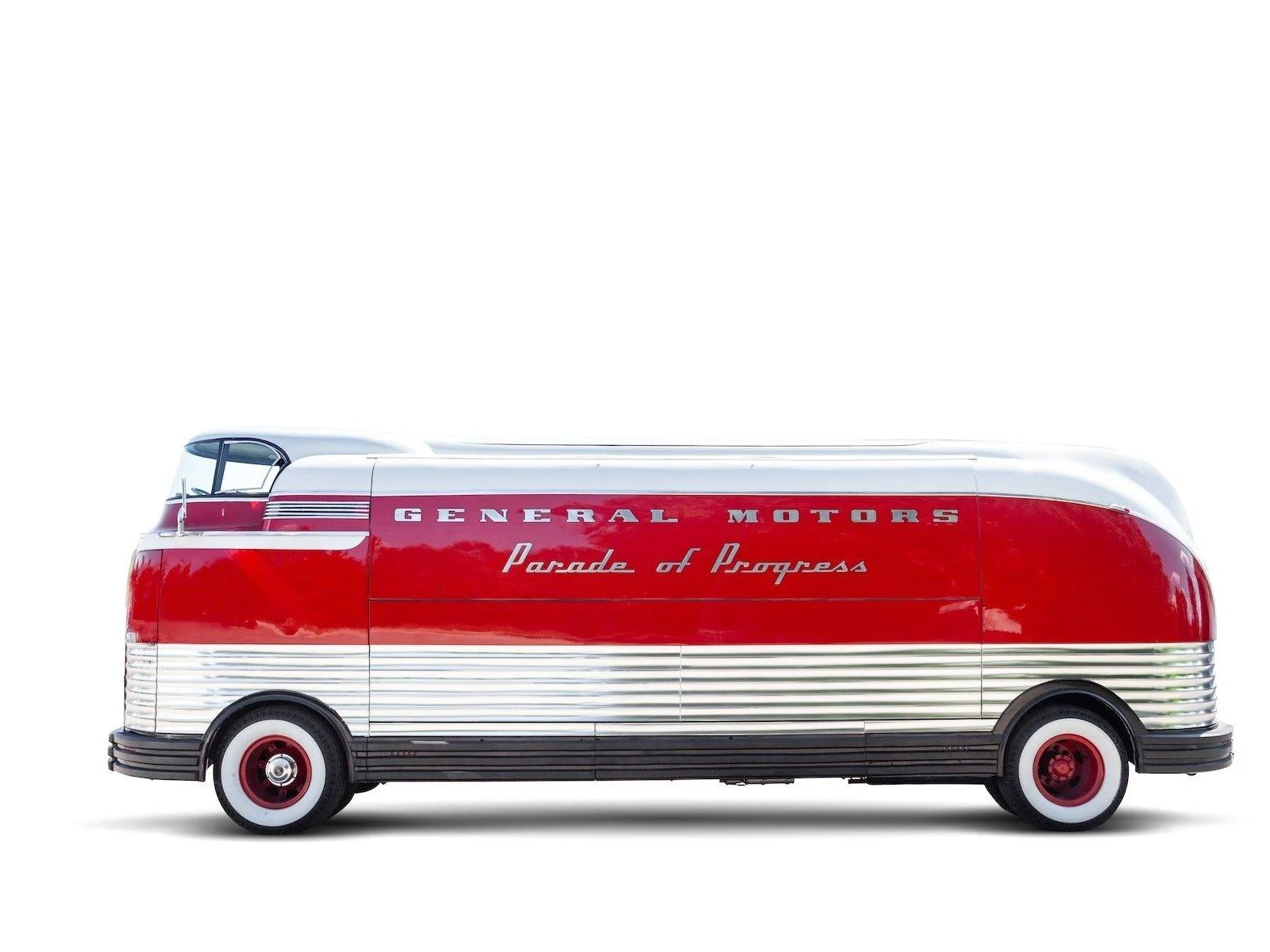

GM launched the Parade of Progress in 1936 to promote the scientific and technological achievements of America as part of a traveling educational show. The Parade of Progress featured three distinct “tours” from 1936 to 1956. When the Parade first set out in 1936, it featured eight specialty built “Streamliners” used as transport trucks and display stages for the exhibits. The Parade traversed the U.S. and visited Cuba, Mexico and Canada. In 1940, GM refreshed the Parade for one tour before WWII. This included the construction of twelve new “Futurliners” to replace the Streamliners. GM debuted the Futurliners on the second tour of the Parade of Progress in Miami, Florida in February ‘41. After the war, GM re-styled the Futurliners and the show was resumed in ‘53. When it came to a close in ‘56, the Futurliners were sold off. Joseph Bortz donated Futurliner No. 10 to the National Automotive and Truck Museum in ‘92. It was restored by volunteers in the 2000s. NHVR No. 6 HAER No. IN-114

Paint and exterior

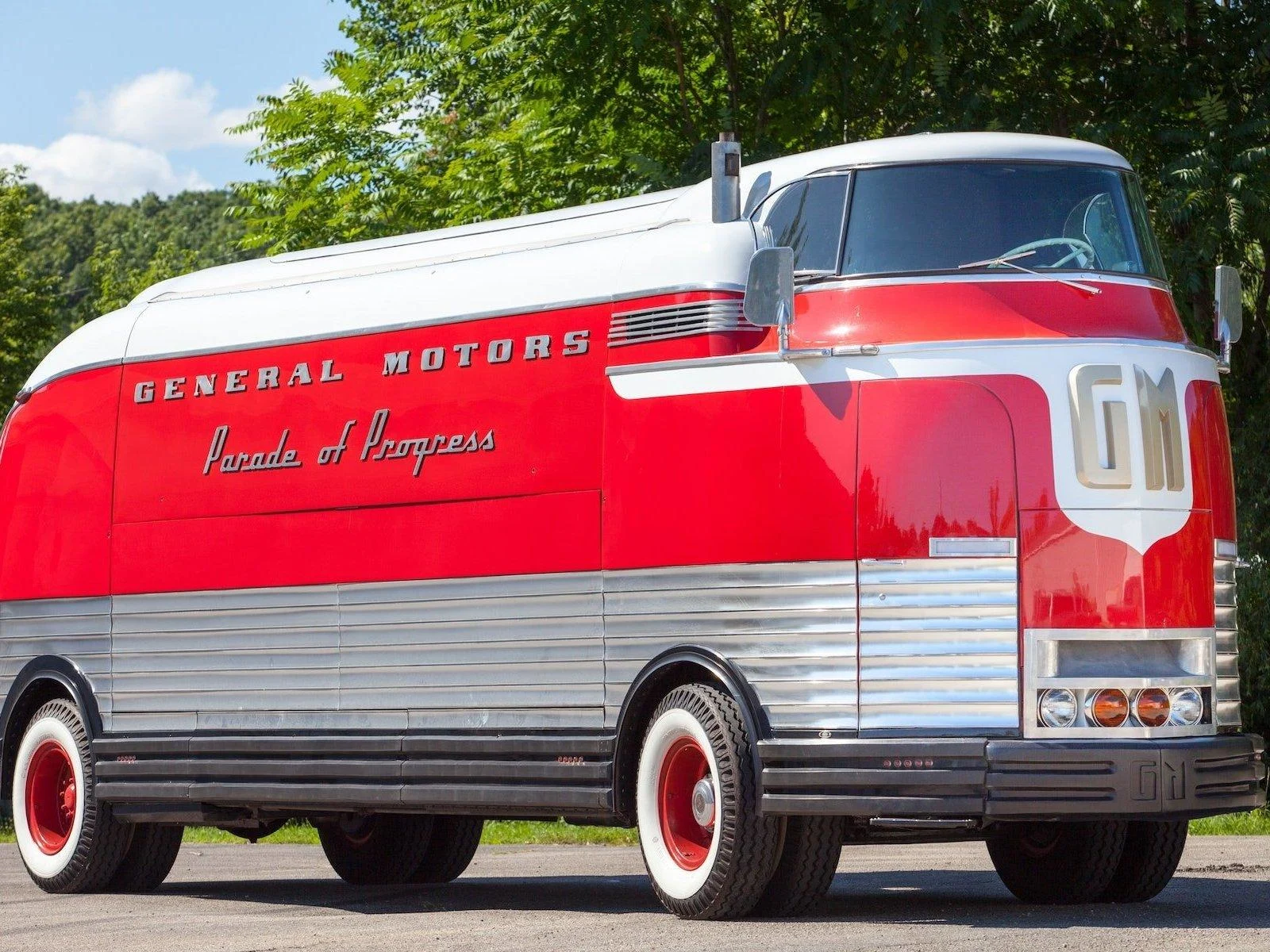

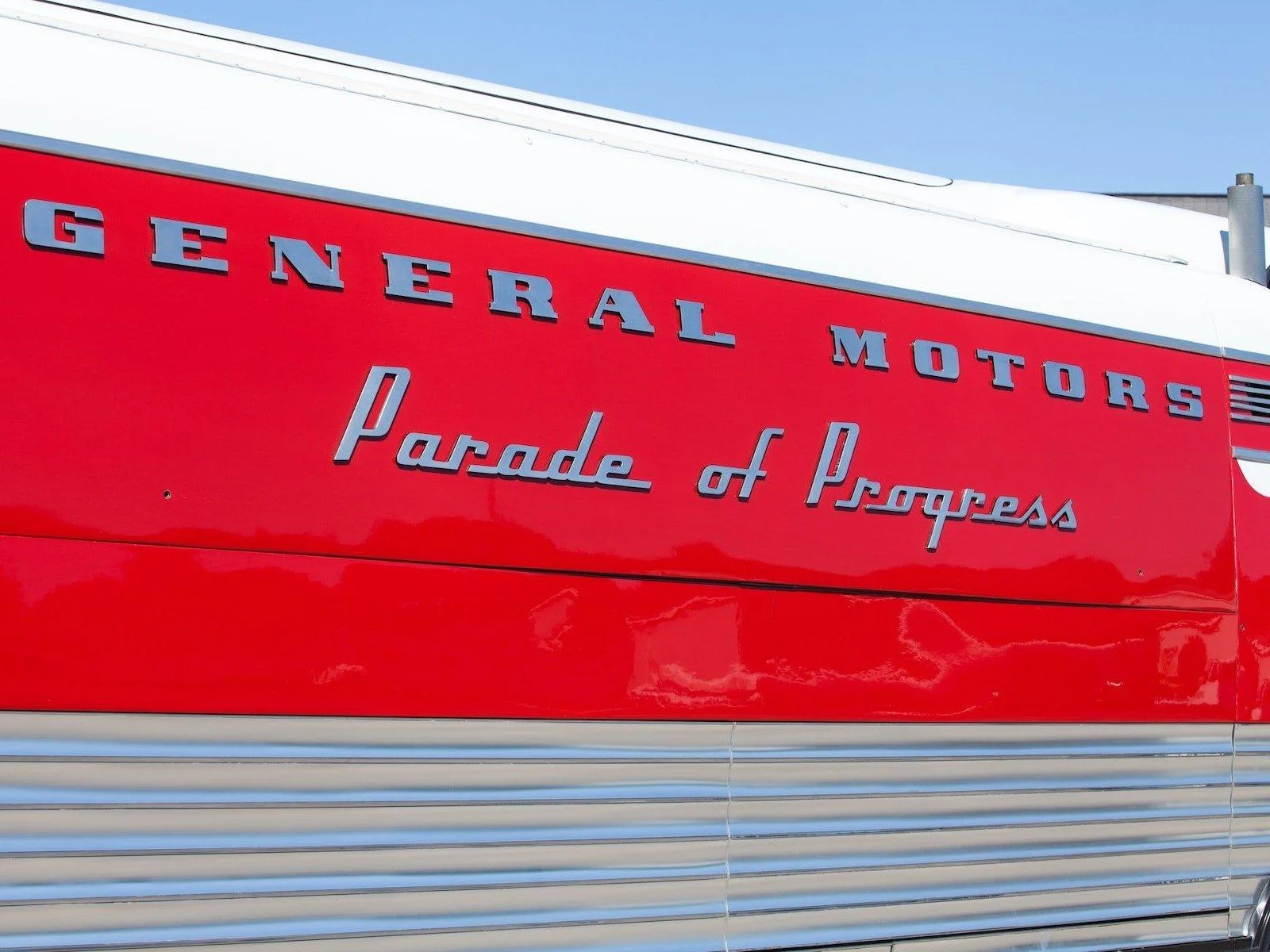

This vehicle is in restored condition. It was repainted in the 2000s when it was fully restored by volunteers led by Donald Mayton of Beaverdam, MI.

Upholstery and interior

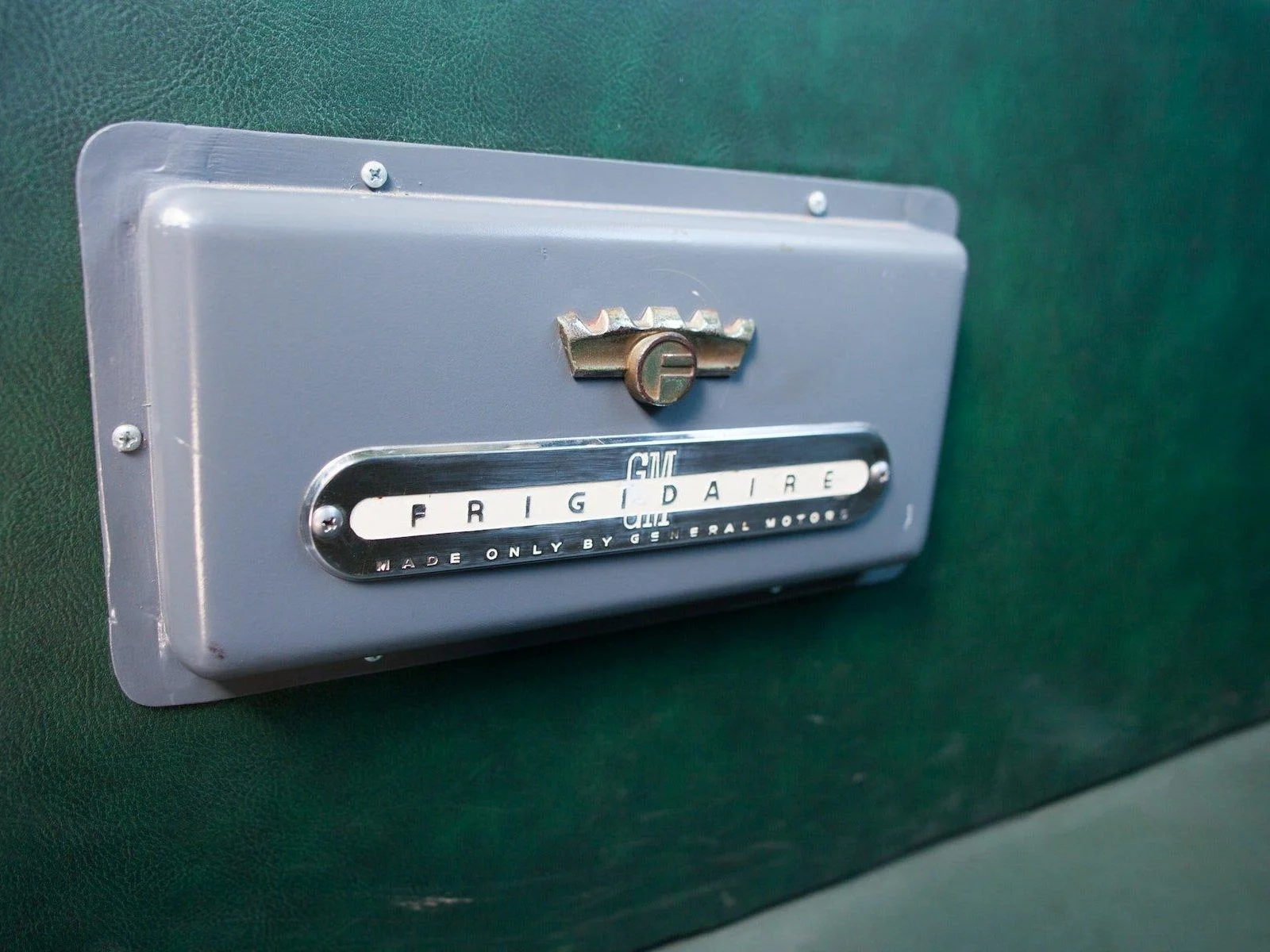

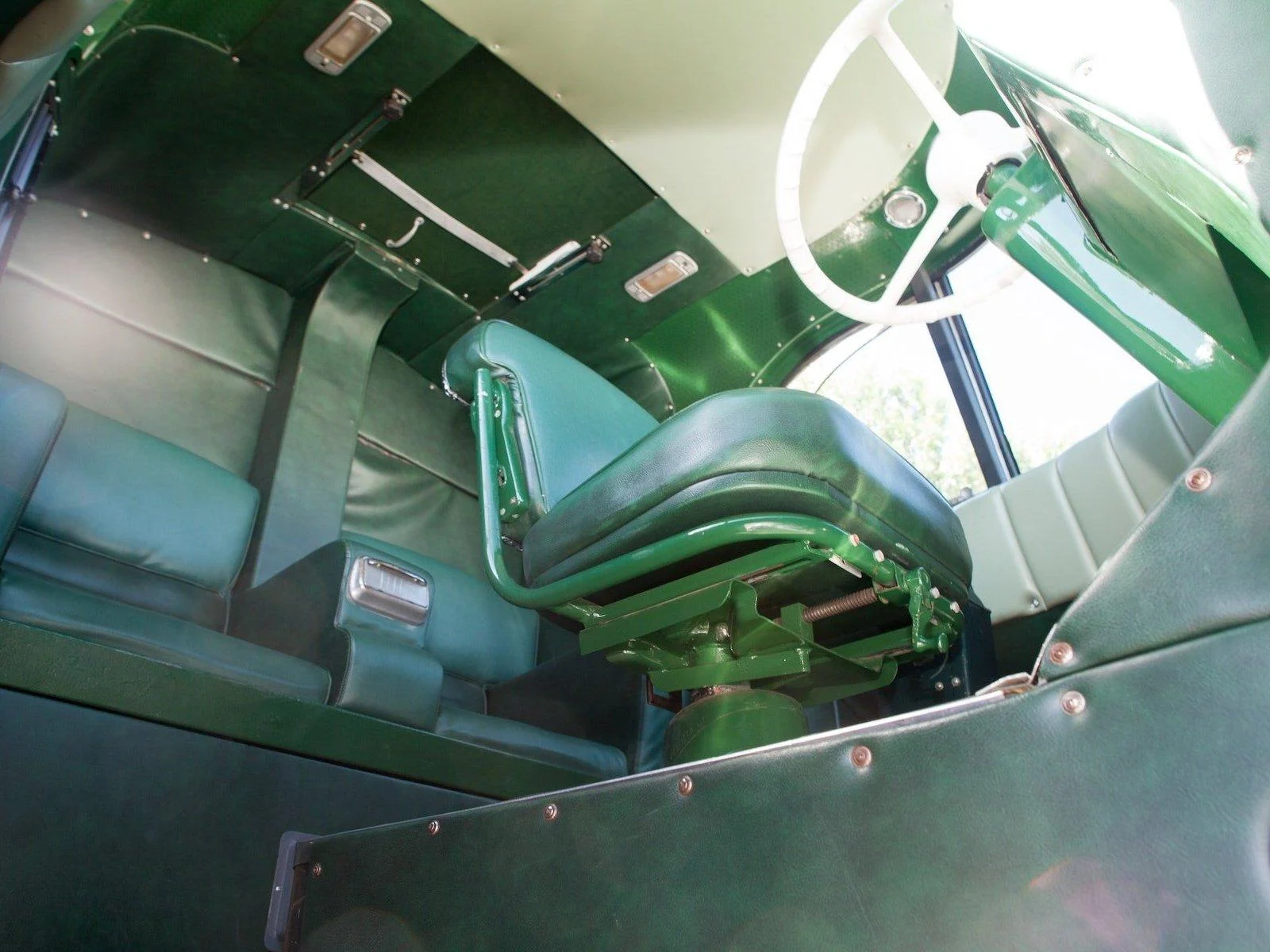

This vehicle’s interior is in restored condition. It features green leatherette seats. It was reupholstered in the 2000s when it was fully restored by volunteers led by Donald Mayton of Beaverdam, MI.

Engine

GMC liquid-cooled, OHV 301.6 cid (4942.3 ccd) inline 6-cyl., 145 hp. gasoline engine. It has a 2-bbl Holley downdraft carburetor.

Wheels and tires

20" dually steel wheels, 8 custom-made 10.00 x 20 bias-ply tire

Brakes

Four-wheel hydraulic drum brakes
